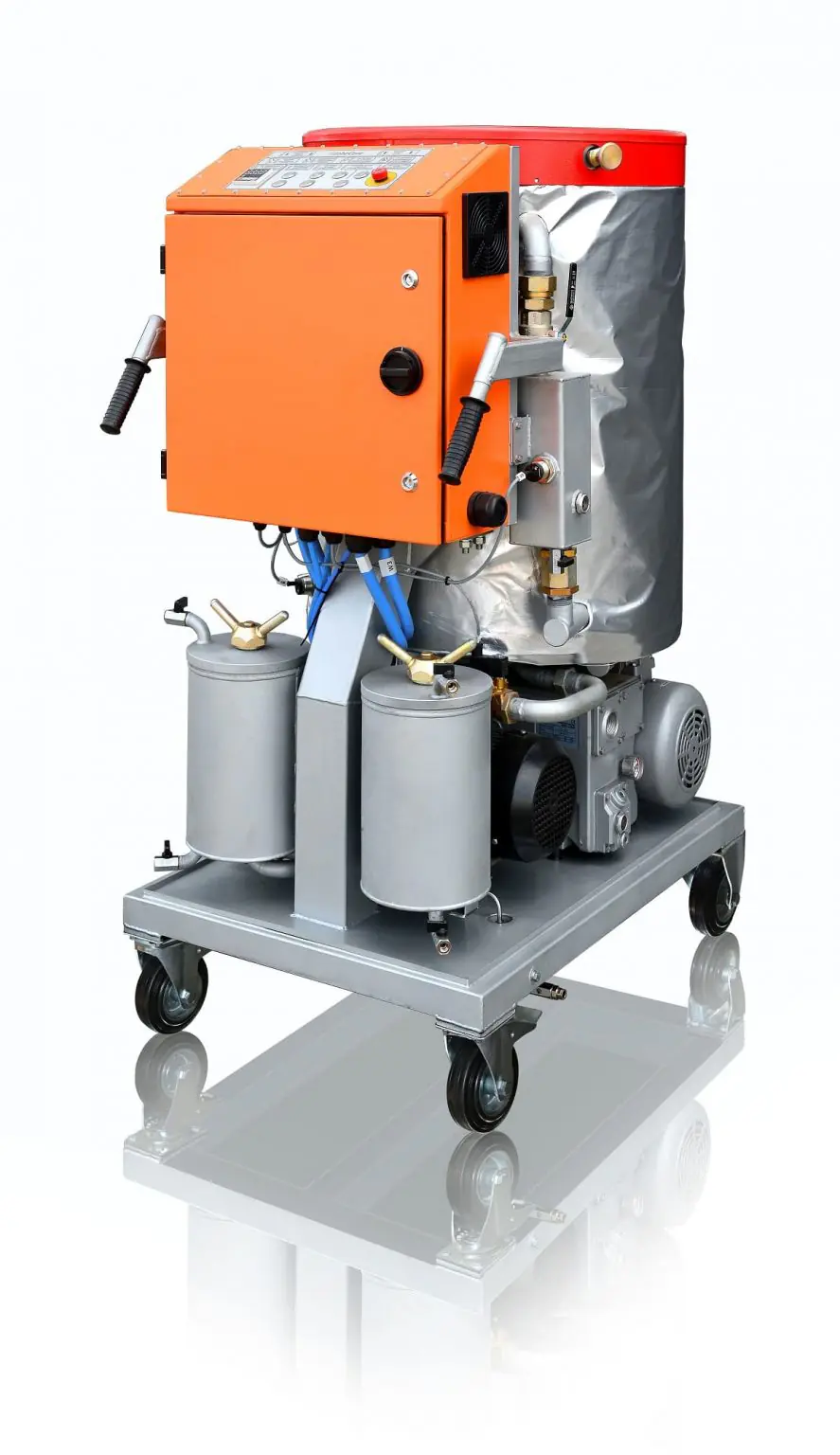

CMM-1 Mobile oil plant
The mobile oil station CMM-1.0 is designed for purification of electrical insulating oils from mechanical impurities, water and gases, whose viscosity at a temperature of 50 ° C does not exceed 70 cSt. The station provides oil purification up to grade 9 with an initial purity class of 13, after the repeated passage of the product through the filter unit.
CMM-1.0 is used during the installation, operation, maintenance and service of high-voltage facilities (such as power transformers, high-voltage circuit breakers, etc.) to maintain the brand-new condition of the oil inside of them.
Operation modes
The unit can operate in three different mode types:
1. filtration;
2. purification with heating and thermal vacuum cleaning;
3. degassing.
Design
The machine consist of the next components:
1. Vacuum column;
2. Control cabinet;
3. Coarse filter cartridge;
4. Fine filter cartridge;
5. Inlet pump;
6. Outlet pump;
7. The vacuum pump;
8. Dehumidifier;
9. Pipeline system with shutoff and control valves.
- Thermal vacuum oil purification in one cycle;
- significantly extends oil life;
- mobile and convenient;
- easy to maintain and operate;
- construction is possible both stationary (in a container, on a frame, under a canopy cover) and mobile (on wheels, on a trailer);
- spare parts are included with the unit.
| Parameter | Value |
| Capacity, м3/hour / gals. per hour: | 1.0/264.7 |
| Max oil output temperature in heating mode, °C/°F | 60/140 |
| Processed oil parameters*: | 10.0 |
| • mass moisture content, g/ton max | |
| • filtration fineness, micron | 5 |
| Oil output head, meters /yards | 20/21.86 |
| Max inlet pressure, MPa | 0.1 |
| Oil heater power, kW | 25.2 |
| Oil heater max mean surface power, W/cm2 | 1.1 |
| Nominal power, kW | 29 |
| 50 Hz AC power voltage, V** | 380 |
| Dimensions, mm/ft | 1300//4’3’’ |
| • length | |
| • width | 800/2’8’’ |
| • height | 1550/5’1’’ |
| Weight, kg/lbs | 540/1193 |
